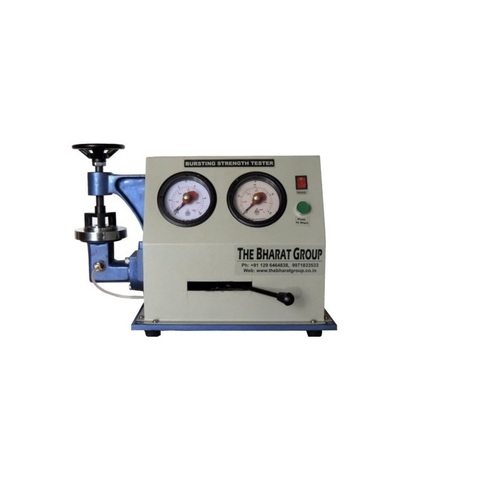

Analogue Bursting Strength Tester

Analogue Bursting Strength Tester
Analogue Bursting Strength Tester
Product Code : 24
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Analogue Bursting Strength Tester

The Bharat Group, is offering its quality equipment, named, Analogue Bursting Strength Tester. This tester is used to check gauging strength, performance and quality of various materials such as fabric, leather, paper boards, rexene, solid fiber boards and Industrial fabric,paper, filter cloth, uneven boxes and boards, sheets, plastic films, etc. Further, it is checked by placing the test specimen between two clamps under sufficient pressure. Once the pressure is applied, the specimen collapse with diaphragm. Hence, this tester helps in attaining reliable and accurate results along with assuring quality of the materials as compared to other materials. Our tester is highly acclaimed among the customers for its attributes such as accurate readings, durability, robust construction, easy to operate and many more. Thus, these testers are widely used in laboratories of industries, institutions, etc. and they are proved to be extremely reliable equipment available in the market. Analogue Bursting Strength Testers are compactly designed to ensure their trouble free operation and long service life. Our company also offers Digital type pressure gauge instrument and Digital type pressure gauge with pneumatic clamping model.

Feature:

  • Easy to operate
  • Sophisticated design
  • Accuracy in reading
  • Long service life

Bursting strength tester of any material such as fabric, leather, paper, paper board & corrugated box etc. Its strength under multi- directional force and is defined, as the hydrostatic pressure required producing rapture of the material when pressure is applied at a controlled increasing rate through a rubber diaphragm.

Bursting Strength Tester is designed to find bursting strength of fabric/ leather/ paper/paper board & corrugated box. A test specimen is held between two annular clamps under sufficient pressure to minimize slippage. The upper clamping surface which is in contact with the test specimens has a continuous spiral grooves. A circular diaphragm of pure gum rubber is clamped between the lower clamping plate & pressure cylinder so that before the diaphragm is stretched by pressure underneath it the centre of its upper surface is below the plane of the clamping surface.

The equipment is raggedly designed to give a long & trouble free life. The components are brighter chrome plated or painted in metallic paint to give the tester an aesthetic appearance. Digital type pressure gauge type instruments are also available. Digital type pressure gauge with pneumatic clamping model also available.

Technical Data:

Capacity

35kg /cm²

Opening in upper clamp

30.5 mm diameter

Opening in lower clamp

38.1 mm diameter

Rate of fluid displacement

95 cc/ minute

Test fluid

Glycerine

Gear Box

Worm reduction type

Motor

Horsepower

Power Required

Single Phase, 220/250 Volts AC

Over Travel Protection

Yes

Display

2 * 16 Character alphanumeric LCD

Key Board

Membrane soft touch

Data Presentation

In Engineering Unit

Manual clamping through rotation of wheel handle automatic pressure & standard pressure gauge range.
